Permissions: All Data Central roles can apply enabled Data Cuts.
Users with the Data Central Designer privilege can configure and manage Data Cuts.
The Data Cut functionality enables users to create a focused view of data deliverables using Advanced Filters. Cutting data allows users to observe relevant records, issues, queries, and subject metrics associated with custom conditions. This method serves to precisely cut or filter a study’s issues, queries, and subject metrics based on their related records. A maximum of 3 data cuts can be enabled for each study.
The Data Cut uses an Advanced Filter to focus on a set of data in multiple Data Central views:
- Data Central listings: Filters all selected domains (listings) by the Advanced Filter.
- Visualizations, GPP: Filters all selected Charts and GPP components by the Advanced Filter.
- Queries, Issues panels: The queries and issues for the selected domains are cut, excluding those not fitting the filter. Queries and Issues raised on Domains not selected in the Advanced Filter display as well.
- Subjects panel: Any aggregate fields (i.e., from Mapper) in the Subjects panel derived from the selected domains, are cut to reflect the records of the Advanced Filter
- Records Review Summary panel: The Records Review Summary panel will automatically update with the relevant records / values for the affected domains, and the affected rows will be highlighted when hovering over the data cut pill; otherwise, they will appear normal / regular.
A Data Cut icon is available for all Data Central users. Clicking the icon opens a list of up to three enabled data cuts to choose from, and disabled data cuts.

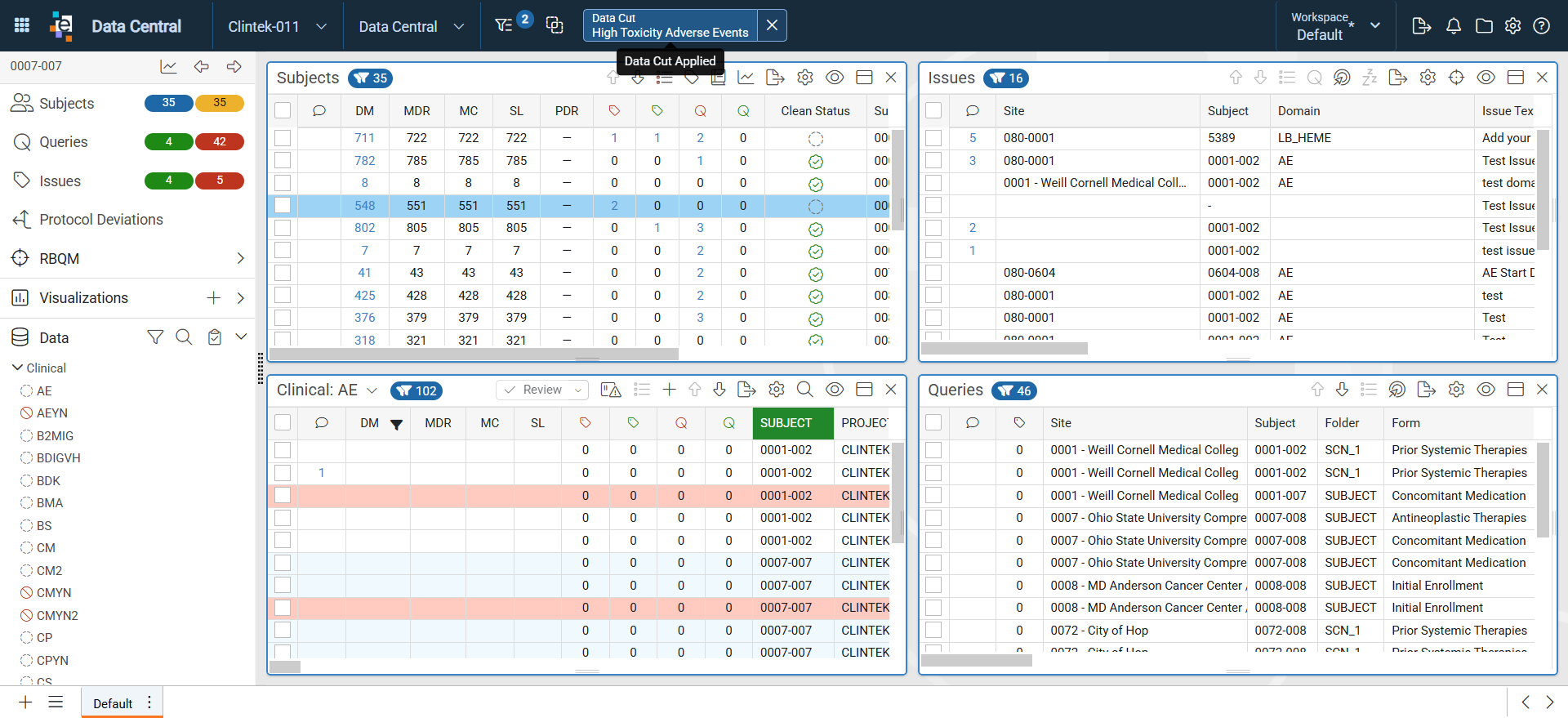

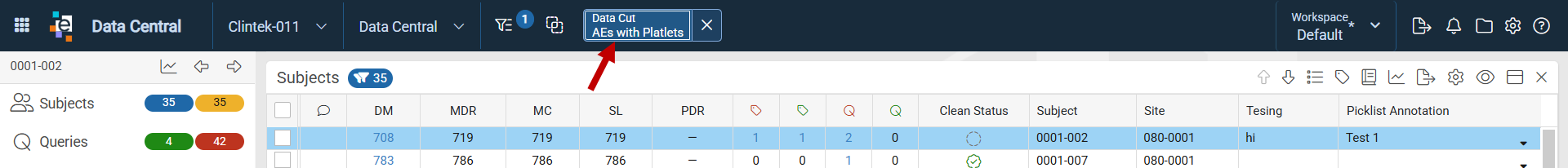

The presence of an applied data cut is indicated by a filter pill displaying the data cut name in the master header. All panels with the data cut applied have a blue highlight around them when the user hovers over the Data Cut filter pill.
Apply a Data Cut

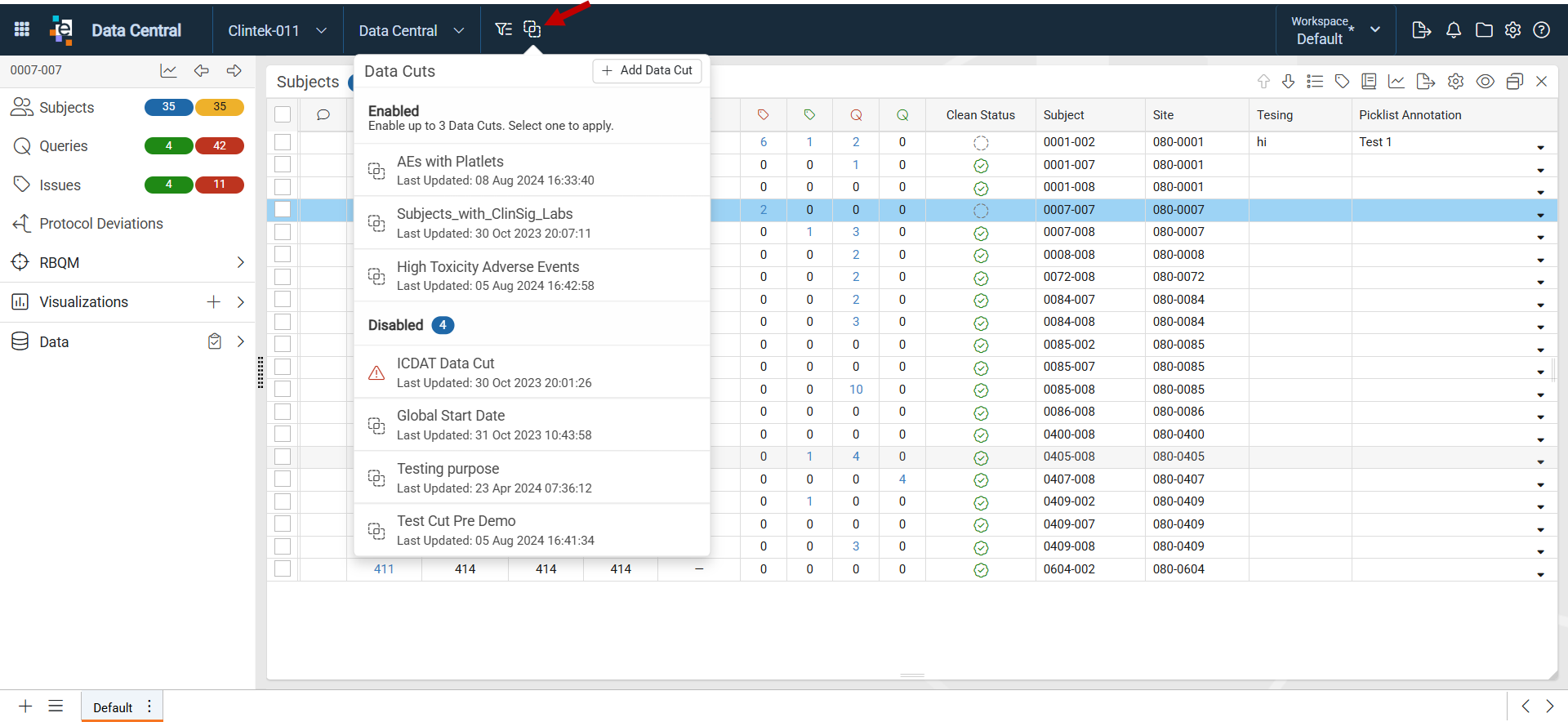

- Within a Data Central study, click the Data Cuts icon in the master header.
- Select an enabled data cut from the drop-down list (the list will include only 3 enabled data cuts per study).

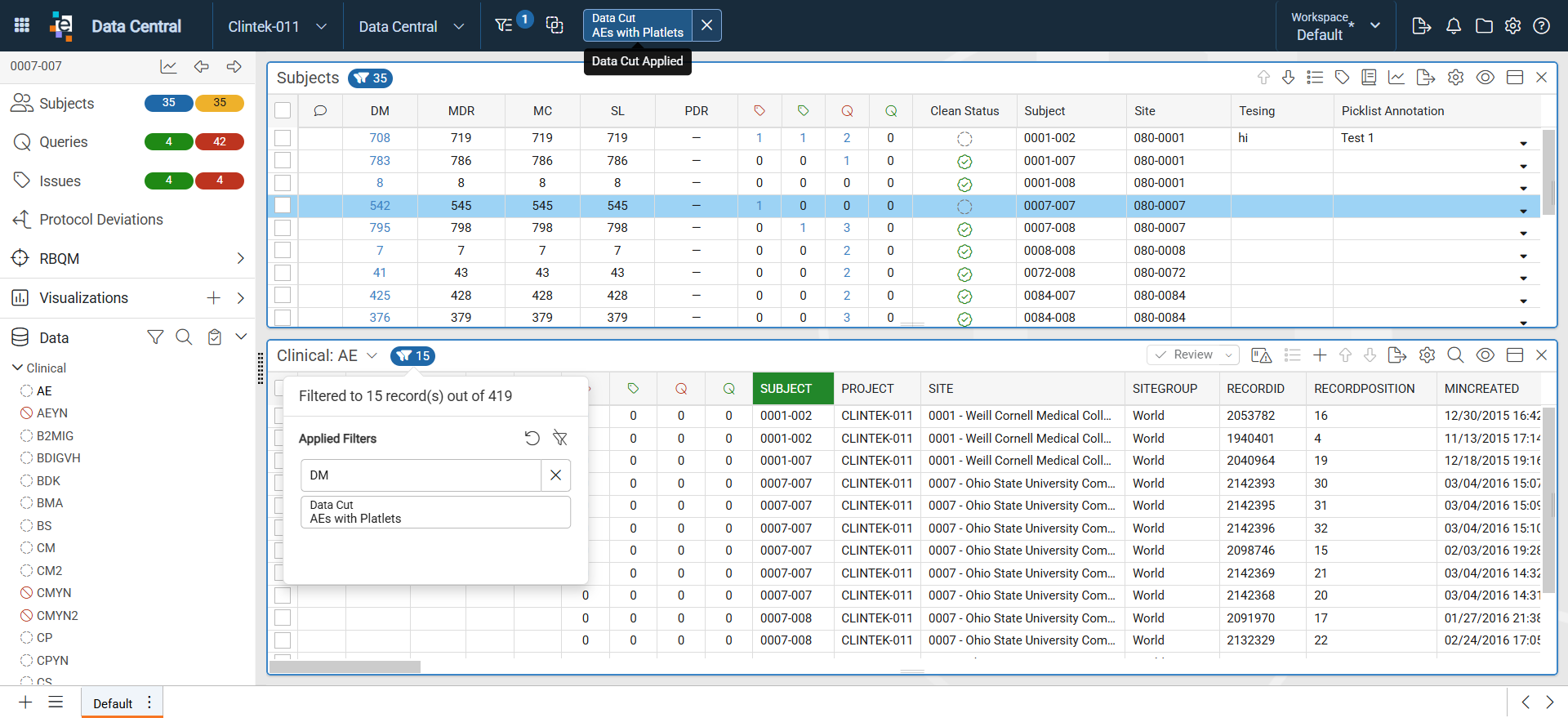

When the user hovers over the Data Cut filter pill, any panel (data listing, Subjects, Issues, and Queries) containing a domain defined in the Advanced Filter(s) will be highlighted with a blue border, showing that the data cut affects those panels. - Open and dock the domain listing(s) indicated in the data cut. In this example, the AE listing in the Clinical datastore.
Tip: Click the filter badge in a panel header to view applied filters in a drop-down menu.
- Open and dock the Issues and Queries panels. Notice that most panels have a blue highlight around them when the user hovers over the Data Cut filter pill, indicating that the data cut applies to those panels.

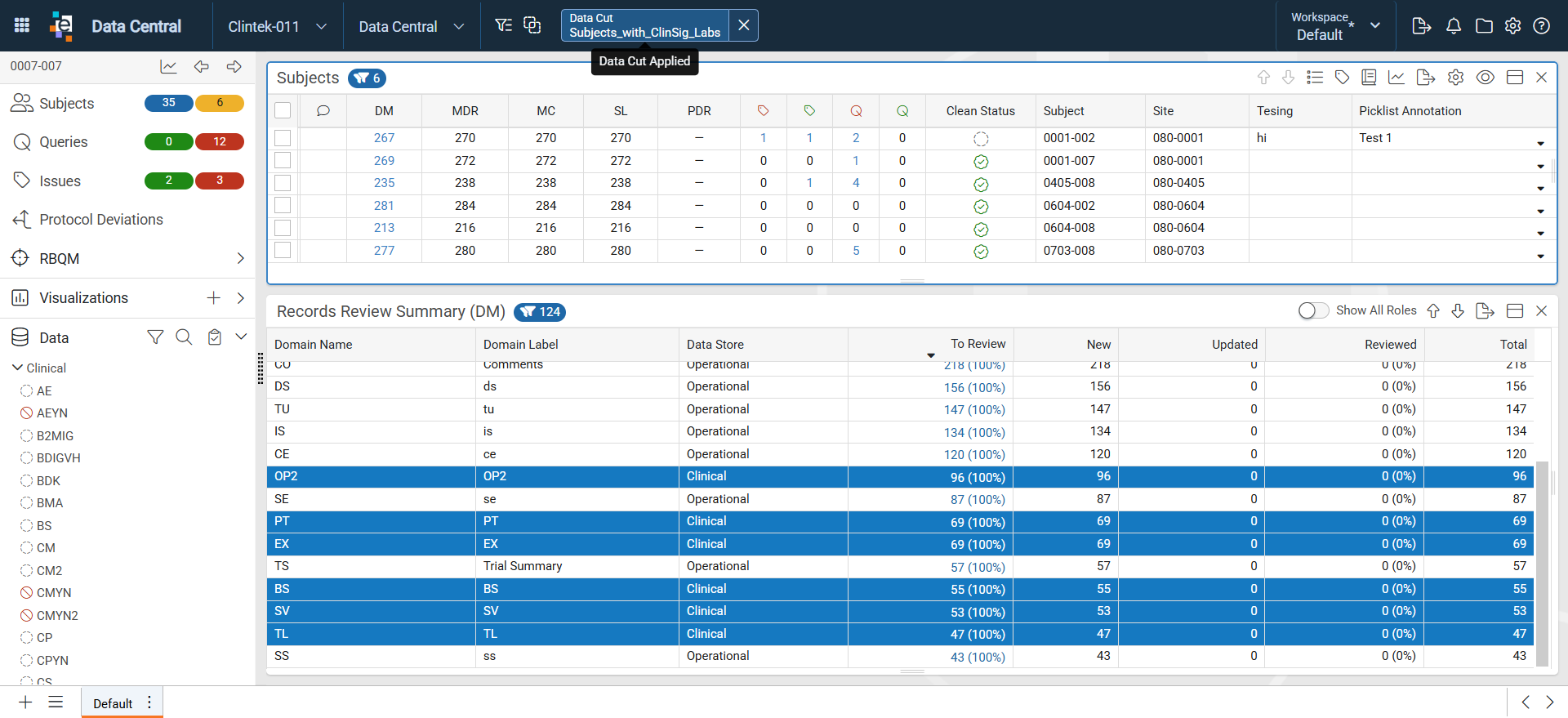

Note: When a Data Cut is applied, the Records Review Summary panel will not be highlighted blue. However, records affected by the data cut will highlight when hovering over the Data Cut filter pill.
View Parameters of the Advanced Filter Defined in a Data Cut

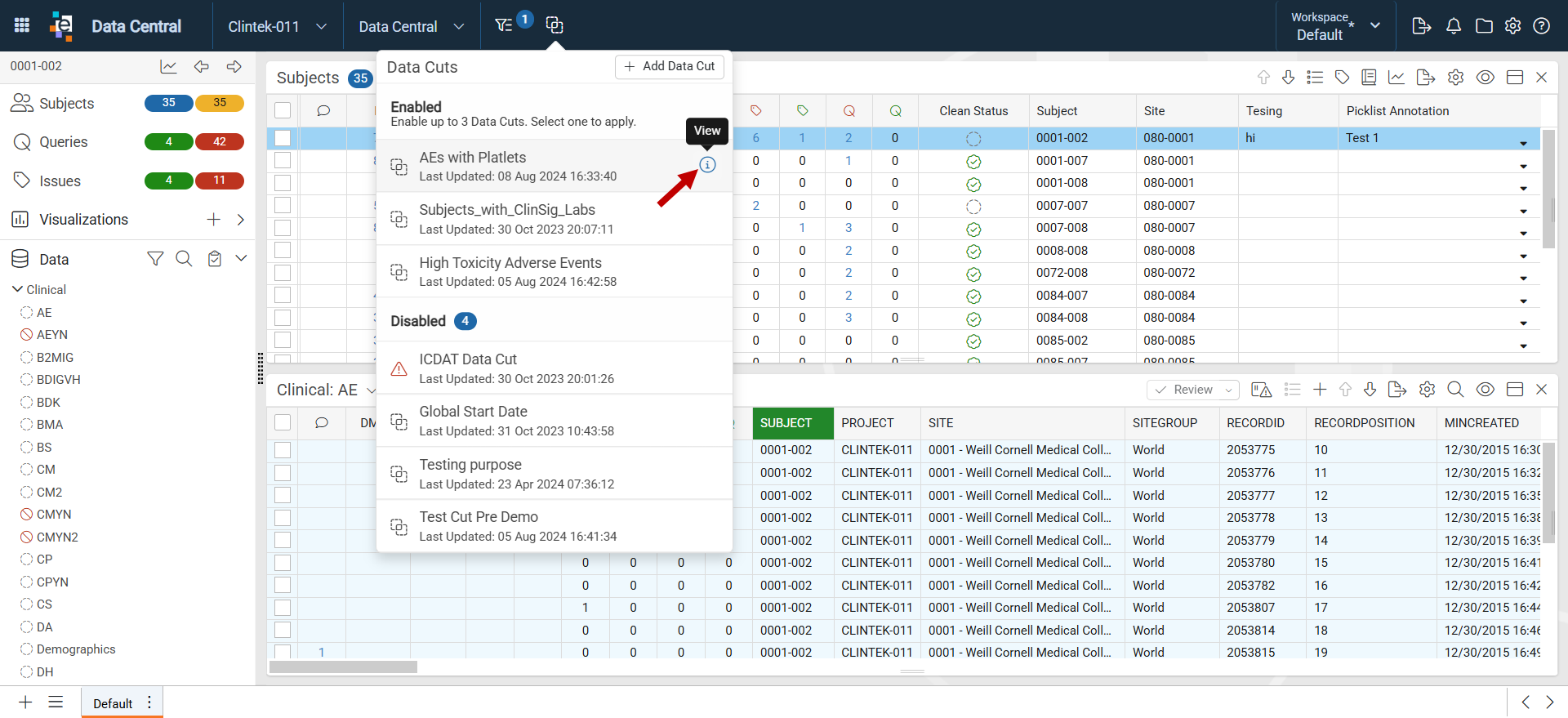

- To view a data cut's advanced filter parameters, click the Data Cut icon to open the drop-down menu, then hover at the right of a Data Cut name and click the View icon.
- OR, click the name of an applied Data Cut name in the filter pill.

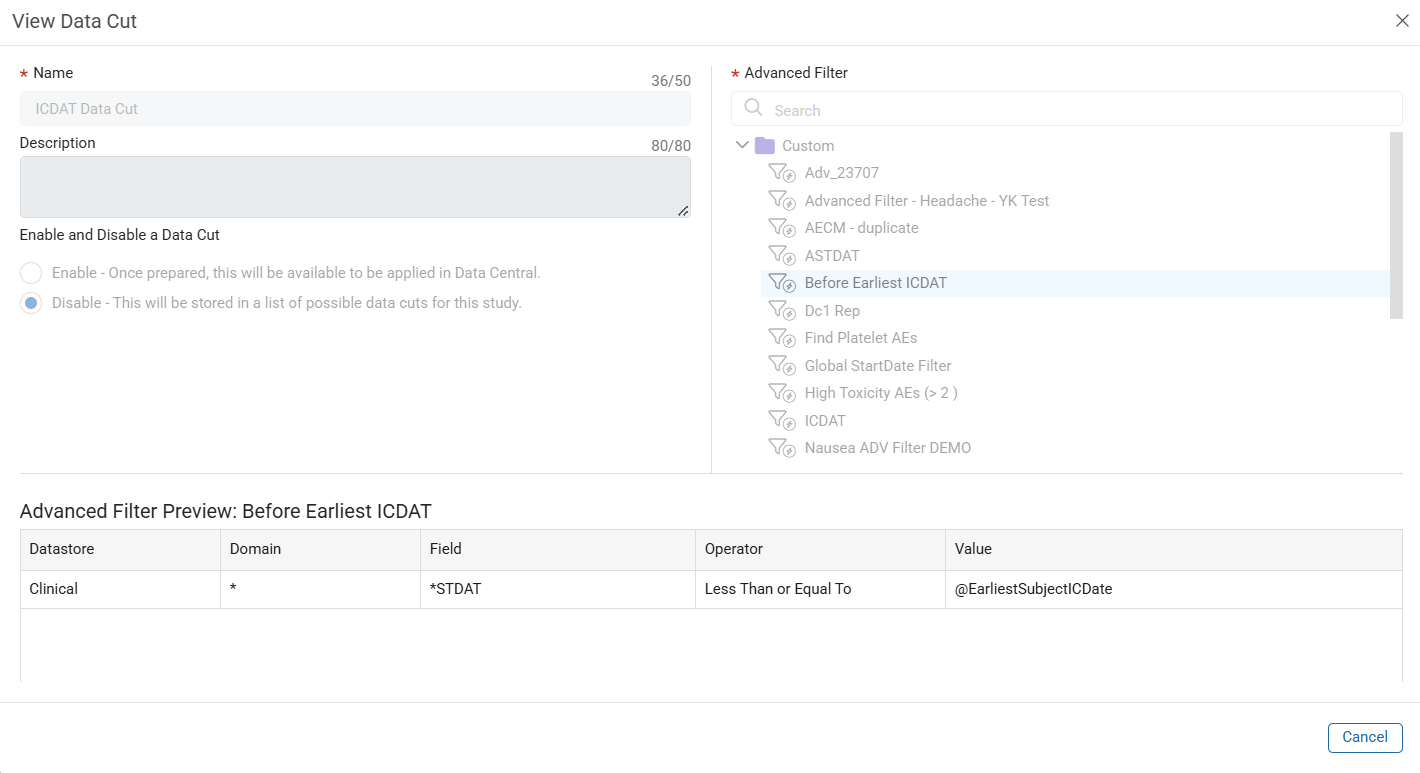

- The View Data Cut window opens. The Advanced Filter parameters display in the lower half of the window. Only users with the Data Central Designer privilege can edit data cuts.
In the example below, the data cut is scoped to any domain in the Clinical datastore with records that occurred before the earliest Informed Consent Date. The advanced filter applies to any domain in the Clinical datastore, to any field ending in 'DAT', is Less Than or Equal To, the Value (The @ indicates a token was created in the advanced filter. Hover over to view the SQL.).
Tip: Other elluminate filter options remain available when Data Cuts are applied.
Remove an Applied Data Cut
- Click the 'X' next to the Data Cut name in the filter pill.
