Within Mapper, existing mappings and mapped domains can be managed. This includes importing, exporting, migrating, and executing mappings.

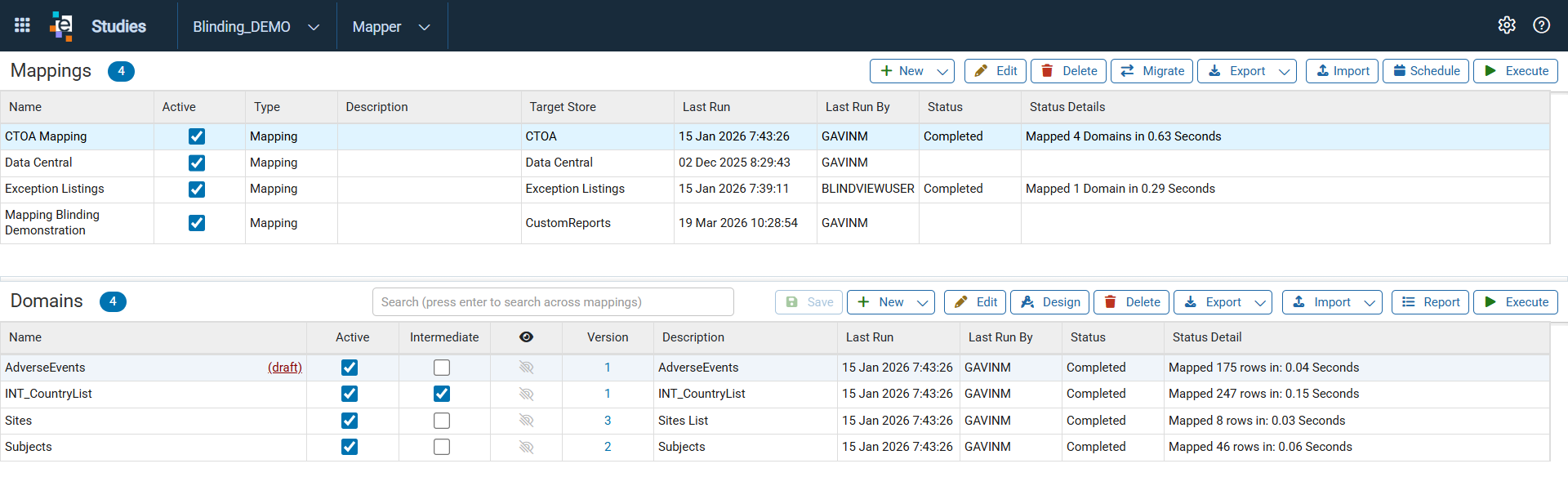

When viewing the Mapper window, options are available for both mappings and individual domains.

View Study Snapshots

When viewing the available mappings and domains, Mapper displays the current mappings by default.

If Study Snapshots have been created, it may still be necessary to view details for previous versions of study mappings. Mappings and domains as they existed at the time of the snapshot can be viewed and reported on. The Study Snapshots field is displayed for studies that have at least one snapshot available.

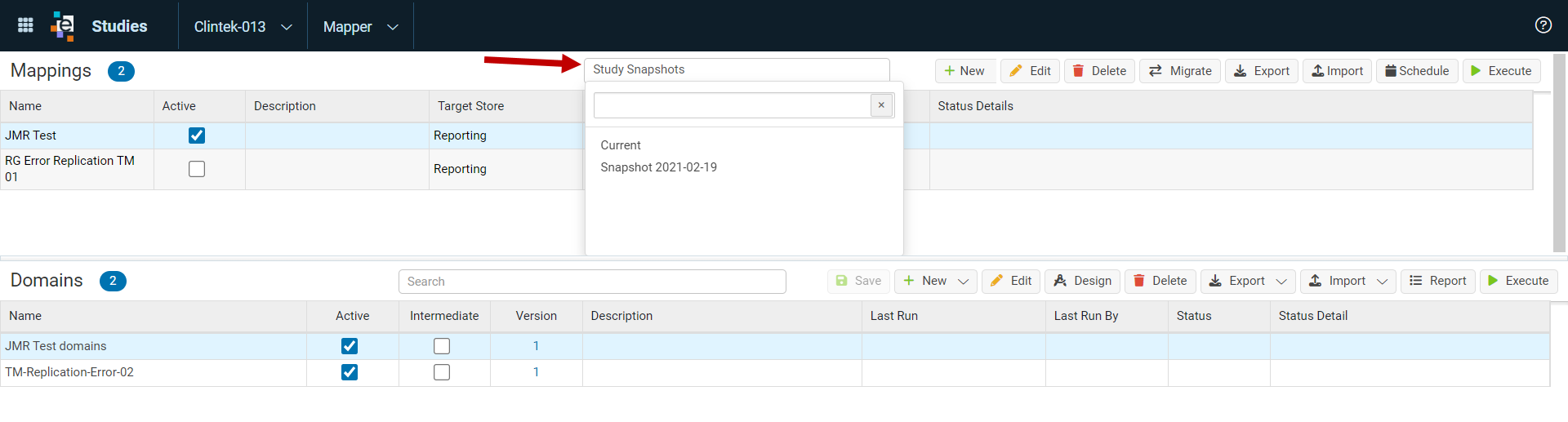

Click the Study Snapshots field to display a list of snapshots and the current settings. The currently selected snapshot is indicated by a checkmark.

While viewing the details of a snapshot other than the current one, the following actions are available:

• Use the Export button in the Mapper section of the window to export a mapping.
• In the Domains section, the Export, Report, and Design buttons are active, allowing export of a domain, creation of a report, and opening of the Domain Editor for viewing.

When editing a domain in a snapshot, details and data can be viewed, but no changes can be made.

Edit Mappings and Domains

Select a mapping in the Mappings section (top section), then click Edit in the top toolbar to open the Custom Mapping window.

Select a domain in the Domains section (bottom section), then click Edit in the bottom toolbar to open the Edit Domain window. For more information about managing mapped domains, refer to the Manage a Mapped Domain in Mapper article.

Delete Mappings and Domains

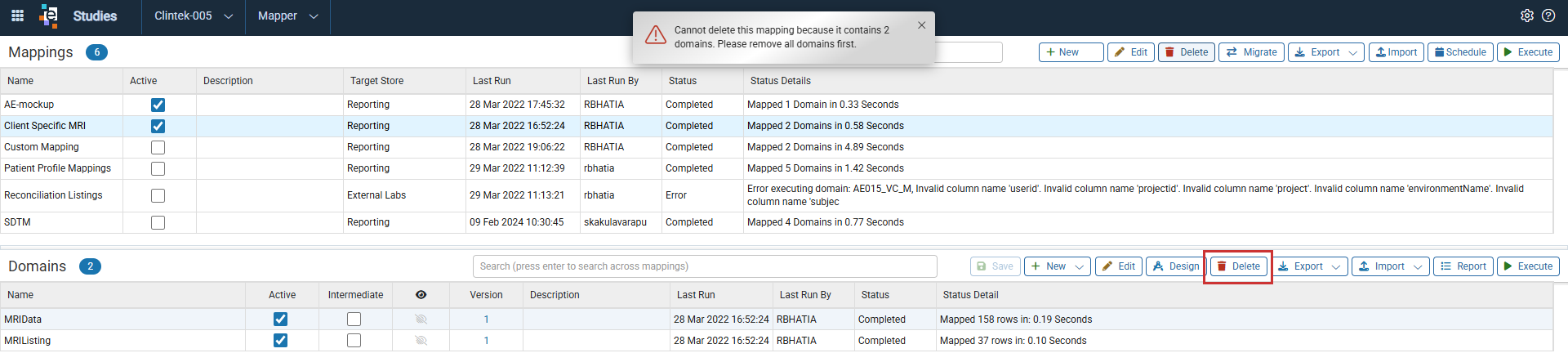

Select a mapping in the Mappings section (top section), then click Delete in the top toolbar to delete the mapping, including all corresponding mapped domains from the system.

Select a domain in the Domains section (bottom section), then click Delete in the bottom toolbar to delete the domain, including all versions from the system.

Import and Export Mappings and Domains

Because data transformation and mapping are often long processes that begin in a test environment, the Import and Export buttons allow creation of a mapping in a test or development environment and migration to a production environment without having to rebuild the mapping.

Mapper also allows exporting of a mapped domain from one study and importing it into another, provided both studies have a similar structure. The import function automatically detects schemas used in the source mapping and substitutes them with the target schema names from the study into which the mapping is being imported.

The Import and Export features affect only the selected mapping. The Import and Export buttons in the Domains section apply only to the currently selected domain.

• For Mappings, the Export button exports a ZIP file containing the JSON definitions of the domains in the mapping.
• For Domains, a single JSON file is created with the domain name and a .json extension.
• The exported JSON or ZIP file is saved to the system's default download directory. For more information about managing mapped domains, refer to the Manage a Mapped Domain in Mapper article.

• The Import button allows importing the JSON definition of a mapping or domain.

  Important: elluminate supports importing XML files exported from previous versions of Mapper.

Example: Exporting and Importing Between Studies

When exporting and importing to another study, if a mapping domain called LB is exported from a study called SourceStudy and is using a DM table from the Clinical data store and an LB table from the External data store, the two tables would be qualified as follows:

• SourceStudy_Clinical.DM
• SourceStudy_External.LB

If the LB domain definition is exported and then re-imported to a study called TargetStudy, the schemas for the DM and LB tables in that mapping are automatically updated:

• TargetStudy_Clinical.DM
• TargetStudy_External.LB

Note: This applies only to source tables in the mapping. Tables referenced directly from an SQL transformation are not updated automatically. If importing domains from a different URL, the data stores used in the mapping must be identical in both URLs (name and suffix). If the source tables do not exist in the target study, the domain is imported successfully and the schemas are updated, but execution fails due to the missing tables. This is expected behavior.

Note: Imported mappings respect the target study’s Data Blinding configuration at execution time. Verify that blinding rules and execution privileges are configured appropriately in the target study before running imported mappings.

Note: Mapping properties, such as Description, Target Data Store, Standards (or Specification), are not included in the export.

Export Mappings

1. From Mapper, select the mapping to export.
2. Click Export. A ZIP file with the name of the mapping is saved to the downloads folder.

Note: If a file with the same name already exists in the downloads folder, the system adds a number in parentheses. For example, STDM(1).zip.

Import Mappings

Importing a mapping imports all domain transformation rules that were part of the exported mapping.

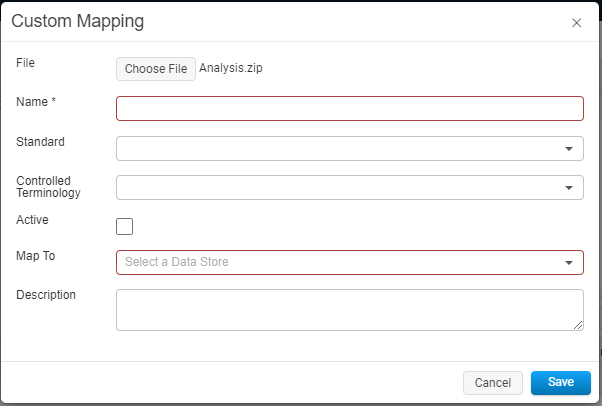

1. Click the Import button above the mappings. A Custom Mapping window opens.

2. Click Choose File to browse for and select the exported JSON to import.
3. Click Save to load the mapping details.
   1. If a mapping with the same name as the ZIP file already exists, the Custom Mapping window populates with that mapping's details.
   2. If no mapping exists in the current project, the window is blank.


4. Make the appropriate selections and entries in the Custom Mapping window.
5. Click Save to complete the import process.

Migrate Mappings

The Migrate button allows a one-step migration of mapping rules from one environment to another. Clicking Migrate displays a drop-down list of available target URLs for receiving the migrated mapping.

1. Click Migrate on the toolbar.
2. In the drop-down list, select the target study for the migration.
3. Click OK to confirm the selection and begin the migration process.

Execute Mappings

The Execute button above the mappings executes any active domains in the mapping and writes the resulting data to the selected data store.

Note: Mapping execution respects user privileges and configured Data Blinding rules. If the execution account has the Blinded Data View privilege, unblinded values may be written to target data stores and included in published visualizations. Verify execution account privileges before running mappings that include sensitive data.

When a mapping is executed, associated visualizations can also be published for the resulting mapped data. However, because publishing may be time- and resource-intensive, the Execute Mapping window includes the option to Republish all visualizations to control this behavior.

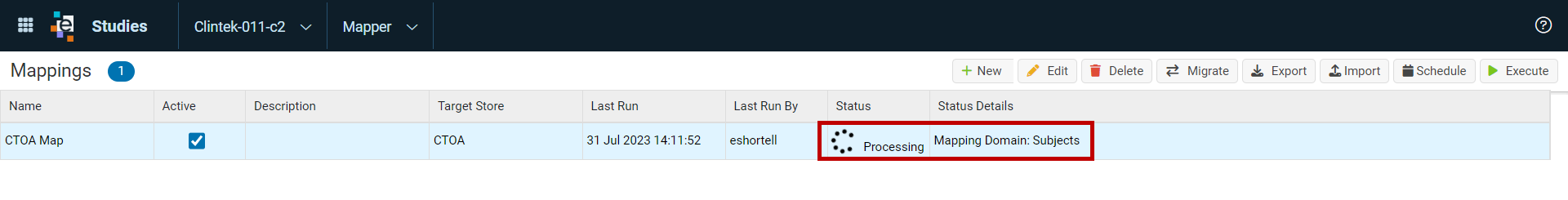

While mappings are executing, the status indicates that processing is underway, and the Status Details column displays the name of the domain currently being processed. This information can help troubleshoot slow mapping execution.

Schedule Mappings

Mappings for studies and global data stores can be scheduled to run automatically. Clicking the Schedule button opens the New Task window, where new tasks can be created, scheduled, and managed, including adding, editing, or deleting actions.
